Catalog
GD01001

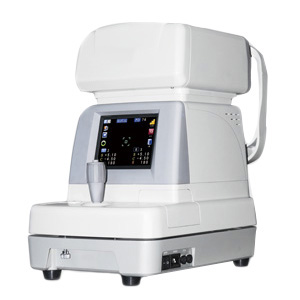

Auto Refractometer
Model No.: FA-6100A
Auto Kerato-Refractometer (Auto Ref/Keratometer, Auto Refractometer/Keratometer, Auto Refractor Keratometer )
Model No.: FA-6100AK
Features:
1. Enlarged measurement range: It allows you to make measurement over a broad measurement range. This means you can even measure extreme myopia eye.
2. Display screen: The CRT Monitor make the measurement results and setting image display on an easy-to-view screen.
3. AUTO PD measurement: The PD will be automatically calculated after measurement.
4. Easy, one-hand control: All operations, including UP\Down, Right\Left, Forward\Backward and Start can be easily controlled with one hand through the control stick.

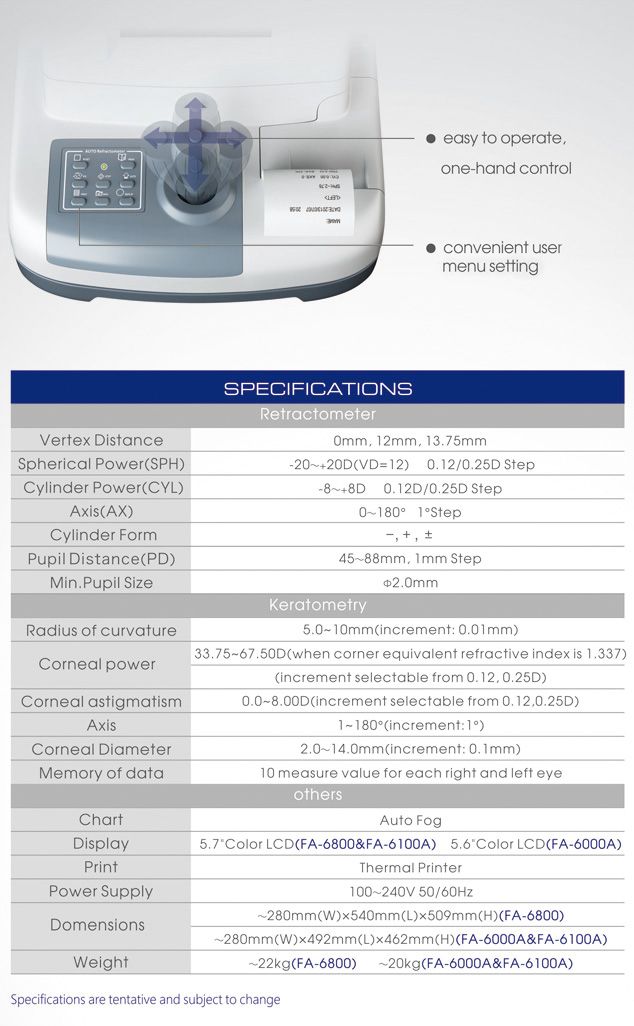

Specifications:
|
Auto Refractometer | |
|
Vertex distance |
0mm, 12mm,13.75mm |
|
Spherical |
-20 - +20D (VD=12) 0.12/0.25D Step |
|
Cylinder |
-8 - +8D 0.12/0.25D step |
|
Axis |
0-180D 1D step |
|
Cylinder form |
-,+,± |
|
Pupil distance |
45-88mm, 1mm step |
|
Min. pupil size |
2.0mm |
|
Keratometry | |
|
Radius of curvature |
5.0-10mm (increment:0.01mm) |
|
Corneal Power |
33.75-67.50D (when corner equivalent refractive index is 1.337) |
|
Increment selectable from 0.12,0.25D | |
|
Corneal astigmatism |
0.00-8.00D (Increment selectable from 0.12,0.25D) |
|
Axis |
1-180D (increment :1 D) |
|
Corneal diameter |
2.0 -14mm (increment:0.1mm) |
|
Memory of data |
10 meature value for each right and left eye |
|
Others | |
|
Chart |
Auto fog |
|
Display |
5.7” color LCD |
|
Print |
Thermal printer |
|
Power supply |
100 – 240V 50/60HZ |
|
Dimension |
280mm (w) x 492mm (L) x 462mm |
|
Weight |
20kg |
