GD01002

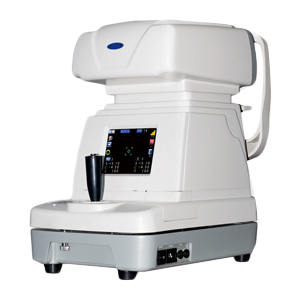

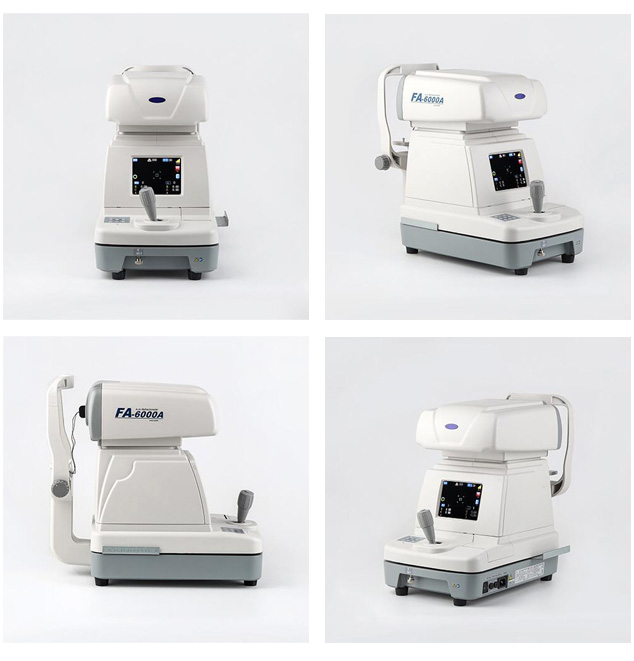

Auto Refractometer
Model No.: FA-6000A



Features:
1. Enlarged measurement range: It allows you to make measurement over a broad measurement range. This means you can even measure extreme myopia eye.
2. Display screen: The CRT Monitor make the measurement results and setting image display on an easy-to-view screen.
3. AUTO PD measurement: The PD will be automatically calculated after measurement.

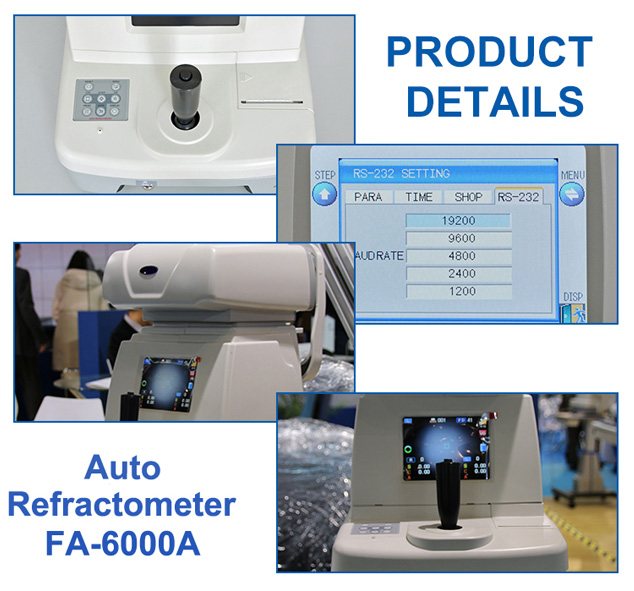

4. Easy, one-hand control: All operations, including UPDown, RightLeft, ForwardBackward and Start can be easily controlled with one hand through the control stick.

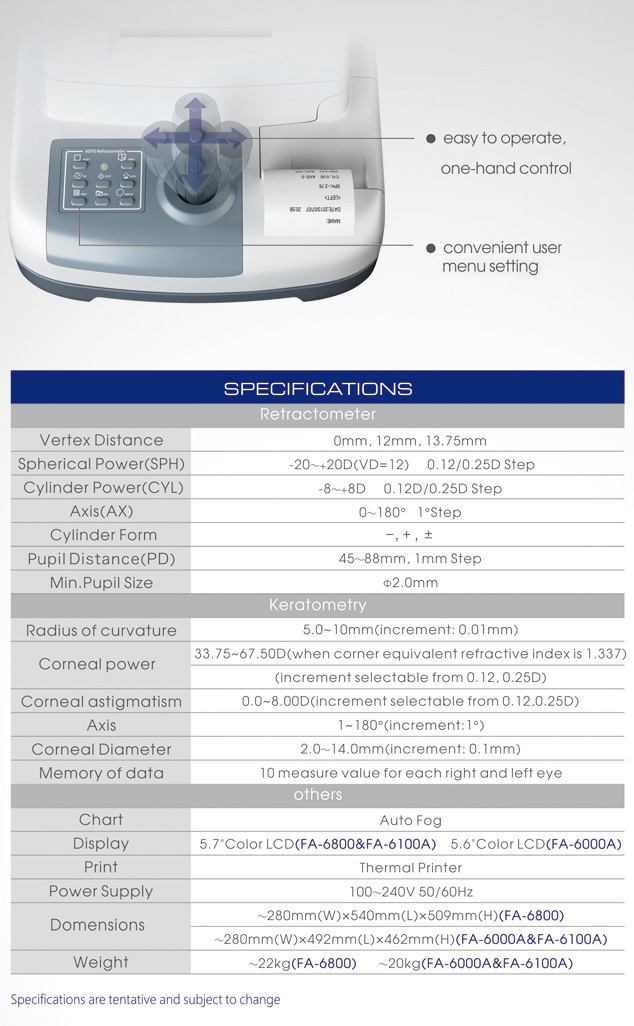

Specifications:

Vertex distance

0mm, 12mm,13.75mm

Spherical

-20 - +20D (VD=12) 0.12/0.25D Step

Cylinder

-8 - +8D  0.12/0.25D step

Axis

0-180°  1° step

Cylinder form

-, +, +

Pupil distance

45-88mm, 1mm step

Min. pupil size

2.0mm

Others

Chart

Auto fog

Display

5.6 Color LCD

Print

Thermal printer

Power supply

100 – 240V 50/60HZ

Dimension

280mm (L) x 492mm (L) x 462mm (H)

Weight

20kg
