GD01003

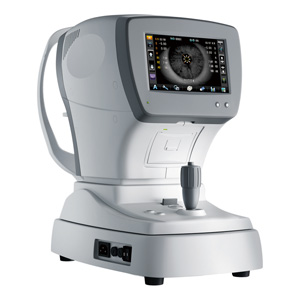

Auto Ref/Keratometer (Auto Refractometer Keratometer, Auto Kerato-Refractometer, Auto Refractor Keratometer)
Model No.: FA-6500K



Auto Refractometer
Model No.: FA-6500




Features:

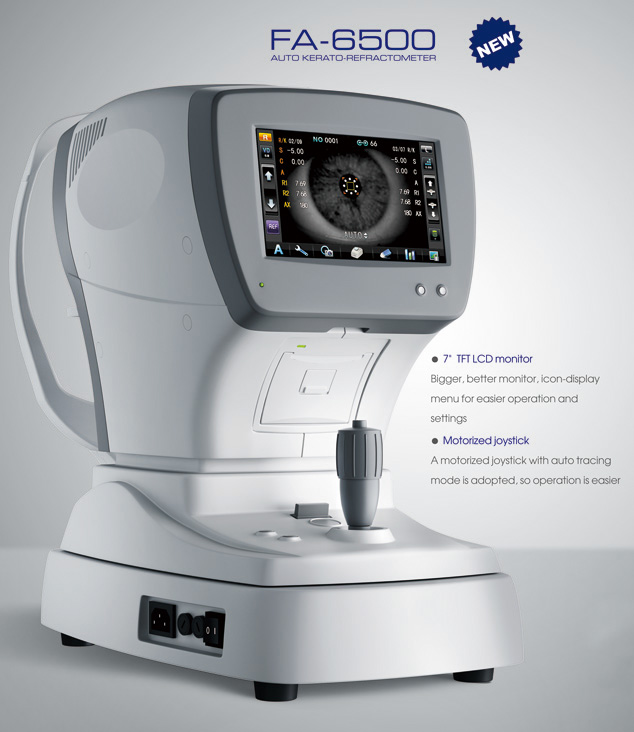

1. 7” TFT LCD monitor:
2. Bigger better monitor, icon display, menu for easier operation and setting;
3. Motorized joystick: A Motorized joystick with auto-tracing mode is adopted, so operation is easier;
4. New designed bracket, Attractive and durable.
5. Tilting screen function that allows wide variance of access.
6. Auto focus function,Just move, it will automatically focus the eye and get the value.
7. Refractive measurement with hexagon prism,with high quality of hexagon prism and highly senstive CCD, it provides unmathced accuracy and reliability.

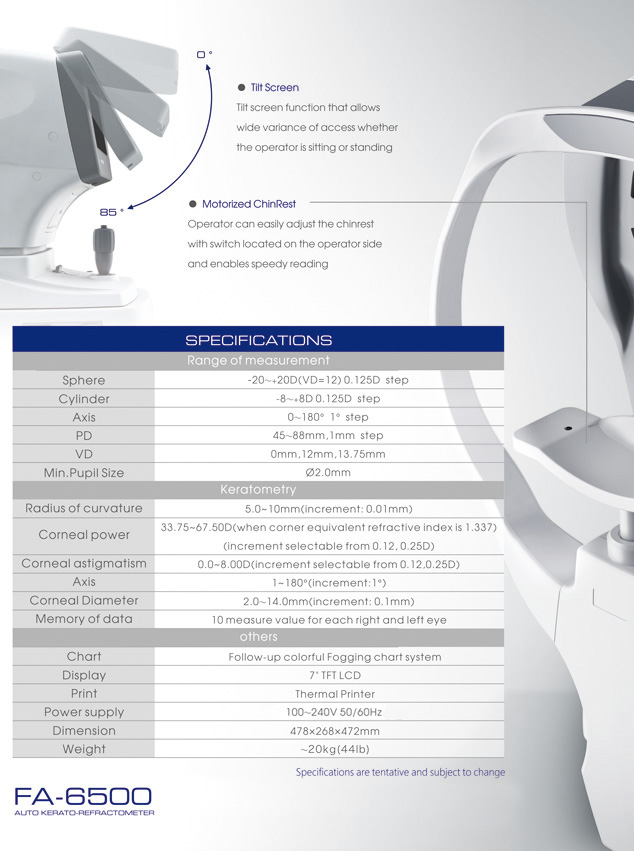

Specifications:

Refractometer

Spherical

-20 – 20D (VD=12) 0.125D Step

Cylinder

-8 – 8D 0.125D step

Axis

0-180° 1° step

Pupil distance

45-88mm, 1mm step

VD

0mm,12mm, 13.75mm

Min. pupil size

2.0mm

Keratometry

Radius of curvature

5.0-10mm (increment:0.01mm)

Corneal Power

33.75-67.50D (when corner equivalent refractive index is 1.337)

Increment selectable from 0.12,0.25D

Corneal astigmatism

0.00-8.00D (Increment selectable from 0.12,0.25D)

Axis

1-180D (increment :1°)

Corneal diameter

2.0 -14mm (increment:0.1mm)

Memory of data

10 measure value for each right and left eye

Others

Chart

Follow-up Colorful Fogging Chart System

Display

7” TFT LCD

Print

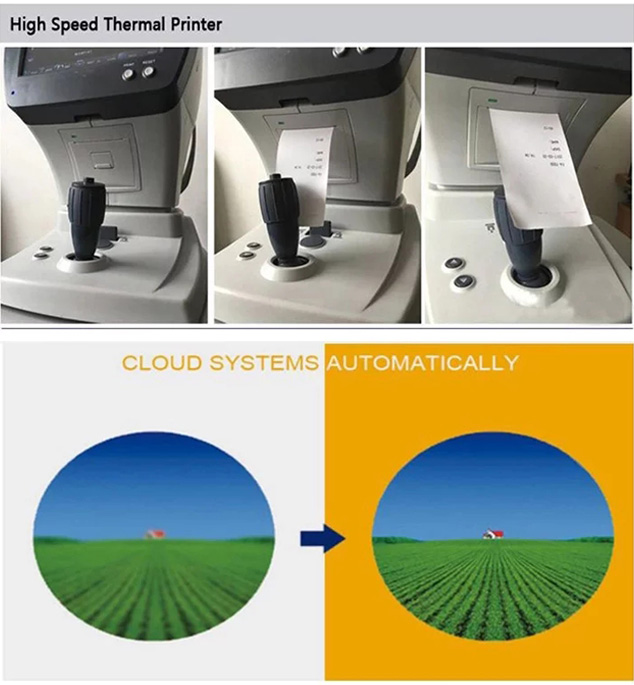

Thermal printer

Power supply

100 – 240V 50/60HZ

Dimension

478x268x472mm

Weight

20kg (44lb)
