GD02005

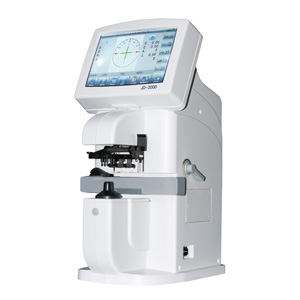

Auto Lensmeter
Model No.: JD-2000, JD-2000B







Features

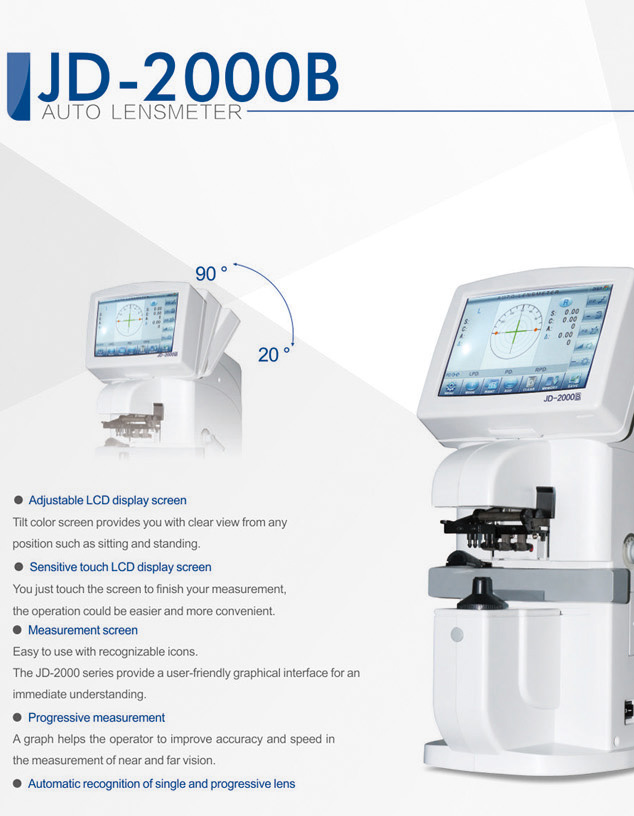

1. Adjustable LCD display screen:Tilt color screen provides you with clear view from any position such as
sitting and standing;
2. Sensitive touch LCD display screen:You just touch the screen to finish your measurement.The operation
could be easier and more convenient.
3. Measurement screen:Easy to use with recognizable icons;The JD-2000 series provide a user-friendly
graphical interface for an immediate understanding.
4. Progressive measurement:A graph helps the operator to improve accuracy and sped in the measurement
of near and far vision.
5. Automatic recognition of single and progress lens
6. High Speed UV measurement: Just hold the lens through the sensor, the display will easily indicate the
UV measurement by the progress bar.
7. Built-in thermal printer:Quack data print with built-in printer. Easy to reload printing paper.

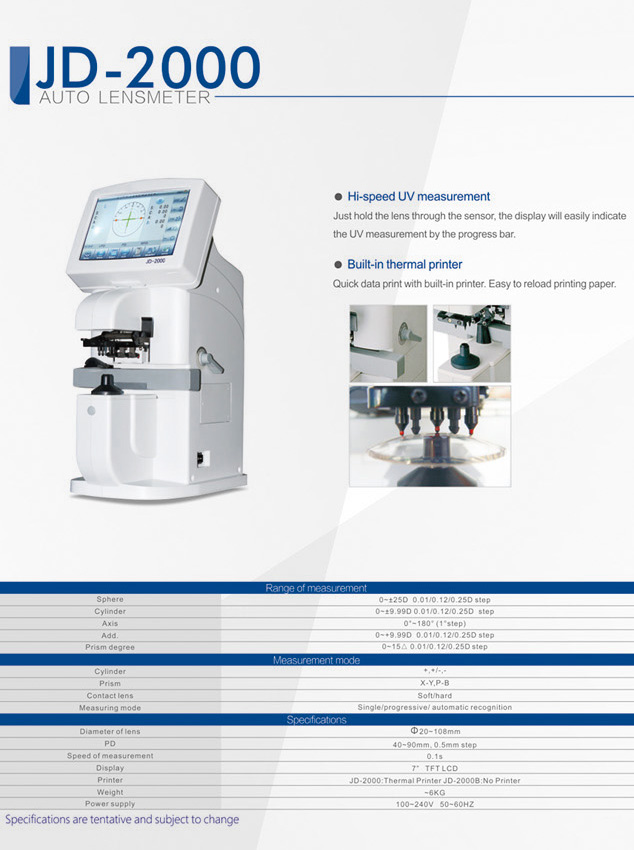

Specifications:

Range of Measurement

Sphere

0~± 25D,  0.01/0.12/0.25D step;

Cylinder

0~ ±9.9 D 0.01/0.12/0.25D step

Axis

0-180 ° (1 ° step)

Add

0-9.99 D  0.01/0.12/0.25D step

Prism degree

0-15 D 0.01/0.12/0.25D step

Measurement Mode

Cylinder

+, +/-, -

Prism

X-Y, P-B

Contact Lens

soft/hard;

Measuring mode

Single/progressive/automatic recognition

Specifications

Diameter of lens

20-108mm;

PD

40-90mm, 0.5mm step

Speed of measurement

0.1s;

Display

7'' TFT LCD

Printer

JD-2000: Thermal Printer, JD-2000B: No printer;

Weight

~5kg

Power supply

100-240V, 50-60HZ  25VA
