GD0401053

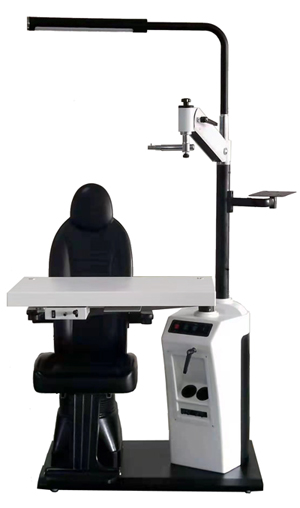

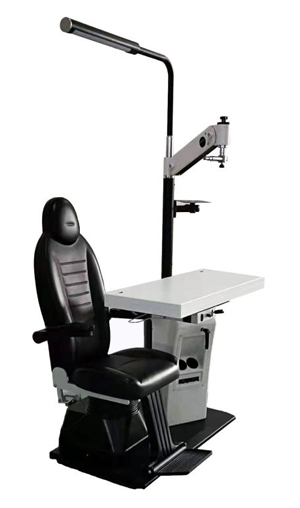

Ophthalmic Unit (Combined Unit, Combined Table)
Model No.: GU810





Features:
1. This ophthalmic unit with smart design, elegant looks.
2. Specially designed table structure, saving space and use conveniently.
3. Table with movable and rotational function.
4. Movable and rotational phoropter's arm.
5. One of the ideal ophthalmic unit for foreign users.



Specifications:

Unit size

1100*1000*2110mm

Table size

860x405mm

Table movable range

330mm

Table rotational range

90°(stop automatically or manually)

Chair height adjustment range

120mm

Chair rotational range

60°(optional)

Loading for chair

150kg

Up/Down angle of swing arm

±30°

Swing arm rotational angle

any point

Chart projector bracket up/down

movable range

200mm

Input Voltage

AC110-220V  50/60HZ

Light

16W AC110-220V

Fuse

5A AC250V

Weight

150kg
