GD09002

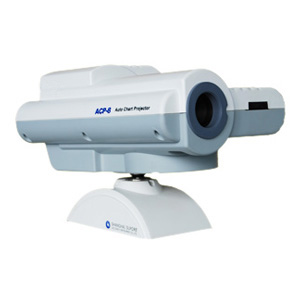

Chart Projector

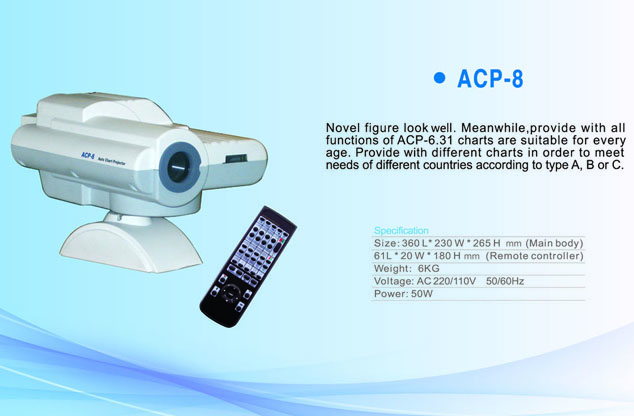

Model No.: ACP-8



Technical Parameter:

Icon

31 to choose

Icon to Select the Speed of

0.3 Seconds

Show

The whole site as the standard display
Single visual target display
Single visual target display
A single visual target display

Filter Color

Red / Green

Projector Distance

2.0m-7.0m(5m is Standard)

Image Expansion of Multiple

30×(5m)

Projection size

φ252mm and 330(W)×225(H)mm(5m)

Tilt

Ball Joints

Light

6V 20W(Halogen), or 5V 5W (LED Light) Optional

Power

AC220/110V  50/60Hz

Power

50W

Auto-Standby Function

3-10Min

Size

Host: 360(L)×230(W)×265(H)
Remote: 61(L)×20(W)×180(H)

NW

Host: 6.0kg
Remote: 180g

Accessories

Spare bulb, depending on the standard plate, spare fuses, batteries
