GD14001

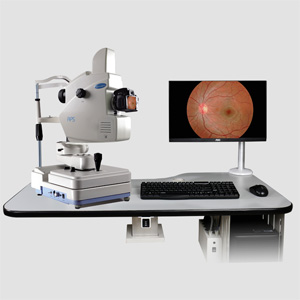

Fundus Camera
Model No.: APS-AER (Model A)

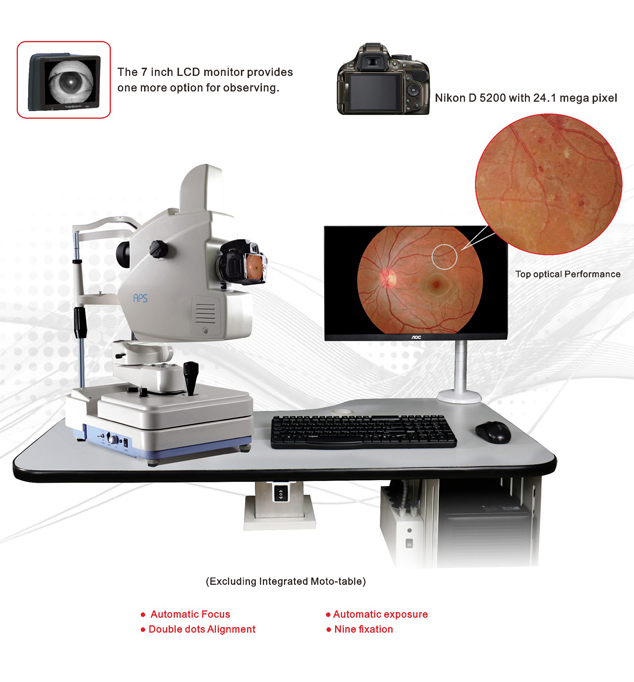

Features:
•Adopts the fifth generation leading optical system in China
•Professional High Definition SLR digital camera, upto 24. 1 Mega pixels
•Auto focus system, auto flash system, auto image optimization
•Multipoint Internal fixation, double dots alignment
•The image is more clear and solid, and the details are perfect.
•More precise and comfortable mechanical movement system
•Automatic jigsaw: seamless splicing pictures, presenting the whole retinal image
•Red free light: the retinal nerve fiber layer is observed, and the sensitivity is higher (optional)
※Fundus color image.
Specifications:
|
Model |
APS-AER (Model A) |
|
Camera Brand And Model |
D5300 |
|
Camera Resolution |
24.1 Mega Pixel |
|
Function |
Color fundus |
|
Lens Type |
Aspherical |
|
Field Of View |
Up to 53° |
|
Non-Mydriatic |
Yes |
|
Minimum Pupil Size |
3.3mm |
|
FFA |
|
|
Light Source |
Infrared LED |
|
Diopter Compensation |
≥ ±15D |
|
Fixation Lamp |
External fixation lamp + five internal fixation lamp |
|
Nine internal fixation lamp (optional) | |
|
Alignment |
Two dots |
|
Focus Mode |
Auto focus & Manual focus |
|
Exposure Mode |
Auto flash & Manual flash |
|
Dicom3.0 |
Optional |
|
Eye Position Identification |
Auto |
|
Optic Angle |
Horizontal ± 30, Vertical ± 12.5 |
|
Working Distance |
42mm ± 2mm |
|
Mosaic |
Auto |
|
Red-Free |
YES |
