GD14003

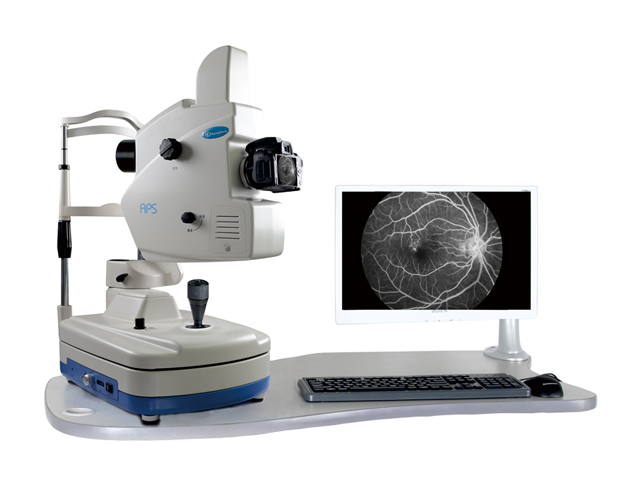

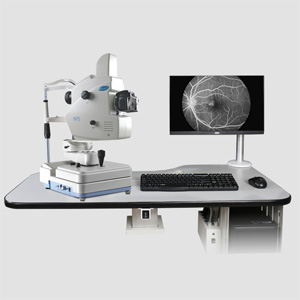

Fundus Fluorescein Angiography System
Model No.: APS-BER



Features:
1.Adopts the fifth generation leading optical system in China
2.Professional high definition SLR digital camera, up to 24.1 mega pixels
3.Manual focus, manual flash, auto image optimization
4.Multipoint Internal fixation, double dots alignment
5.Automatic jigsaw, seamless splicing pictures, presenting the whole retinal image
6.Fundus color image, fluorescence fundus fluorography.
•The smallest pupil is 3.3mm, and the audience is larger, which is suitable for the ophthalmological examination, physical examination and diabetic fundus screening.
•The fundus color images, the dynamic images and static flash of fluorescence angiography of the retina were treated in a digital manner.
•The image can be processed, arbitrarily zooming, moving, pasting, splicing, measuring and calculating the area of the lesion, the editing of the text and the digitization of the generated medical records.







Specifications:

Model

APS-BER

Camera Brand And Model

D5300

Camera Resolution

24.1 Mega Pixel

Function

Color fundus and fundus fluorescein angiography

Lens Type

Aspherical

Field Of View

Up to 53°

Non-Mydriatic

Yes

Minimum Pupil Size

3.3mm

FFA

Flash & Video record

Light Source

Infrared LED

Diopter Compensation

≥ ±15D

Fixation Lamp

External fixation lamp + five internal fixation lamp

Nine internal fixation lamp (optional)

Alignment

Two dots

Focus Mode

Auto focus & Manual focus

Exposure Mode

Auto flash & Manual flash

Dicom3.0

Optional

Eye Position Identification

Auto

Optic Angle

Horizontal ± 30, Vertical ± 12.5

Working Distance

42mm ± 2mm

Mosaic



Red-Free

NO
