GD0601004

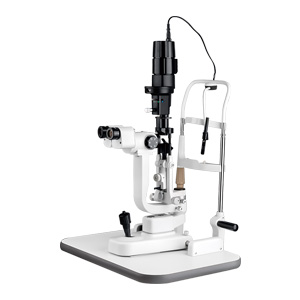

Slit Lamp

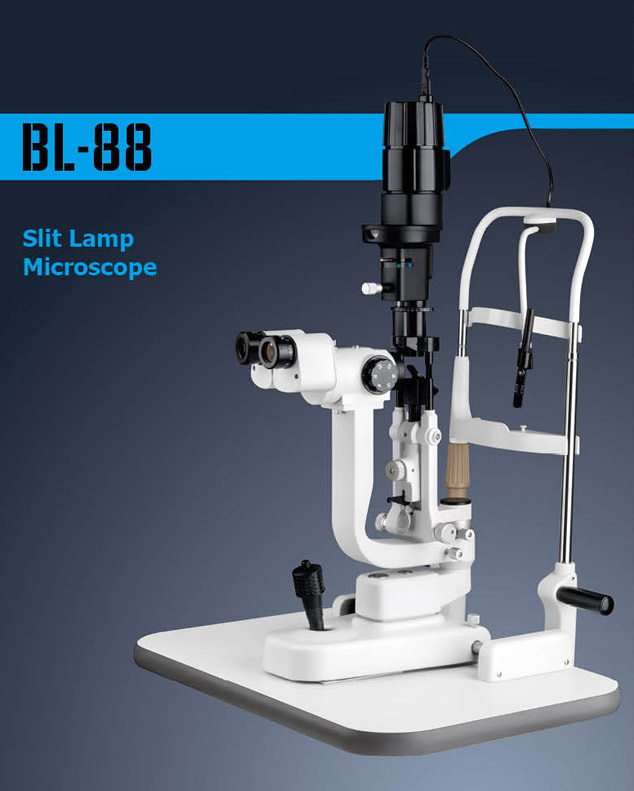

Model No.: BL-88



Features
1.This slit lamp uses the Converging Stereoscope type,and drum rotation.
2.With 5 magnification,when reaching 40X magnification ratio, the blood flow situation can be observed clearly from the blood vessels of the sclera.
3.With big light spot diameter,the slit width can reach 14 mm, observing the eyes more comprehensively.
4.By using multi  level coating process deal with the Optical glass, imaging becomes clear and bright    and the view is widely open.
5.Using importing illumination bulb ,with less heat, brighter and light spot is more well-balanced.
6.With high eyespots, large eyepiece, good stereo sense ,convenient to operate when observing.
7.Humanized designed for Armrest of the chin rest, convenient for the patient.
8.All the connector interface corresponds with the international accessories, easy to update the system.







Specifications:

Microscope

Microscope Type

Galilean stereoscopic microscope

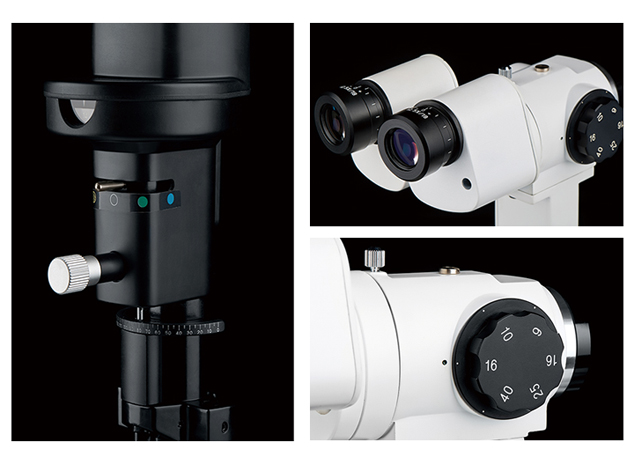

Magnification selection

5 steps magnifications

Eyepiece

12.5X

Magnification Ratio (Field of view)

6X33mm, 10X22.5mm, 16X14mm,

25X8.8mm,40X5.5mm

Pupillary Adjustment

50mm ~ 82mm

Diopter Adjustment

+- 7D

Base

Side Shift

110mm

Depth shift

90mm

Height shift

30mm

Chin rest

Height Shift

80mm

Fixation Target

Red LED

Illumination system

Slit Width

0 ~ 14mm Continuous ( at 14mm , slit becomes a circle )

Slit Height

1 ~ 14mm Continuous

Slit Angle

0°  ~ 180°  adjustable

Slit Inclination

5º,  10º,  15º ,20º

Diameter of Light Spot

Ø14mm, Ø10mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm,

Ø0.2mm  and 1 ~ 14mm Continuous

Filter

Heat Absorption , Grey , Red-Free , Cobalt Blue

Illumination Bulb

12v  50w  halogen lamp

Power

Input Voltage

110V / 220V AC

Frequency

50 / 60 HZ

Power Consumption

68 VA

Weight and Size

Gross Weight

18kg

Dimension

690mm(L) × 440mm(W) × 420mm (H)
