GD1304001

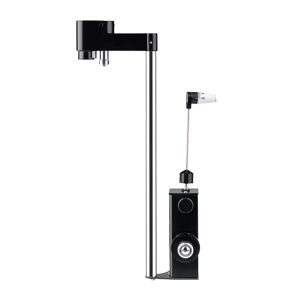

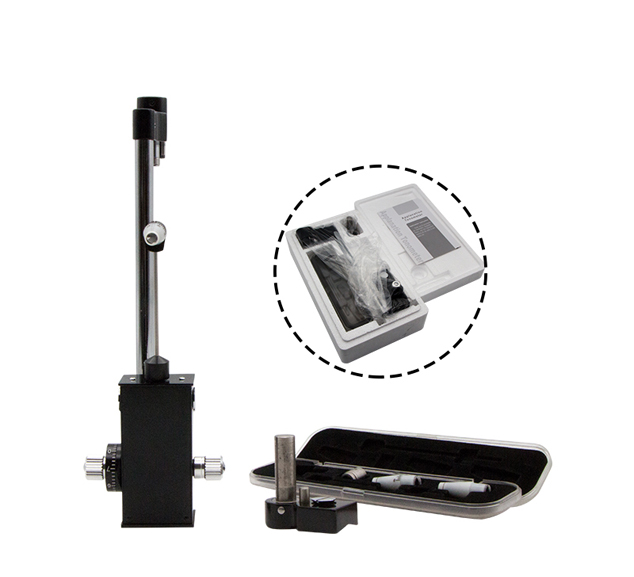

Applanation Tonometer
Model No.: YZ30

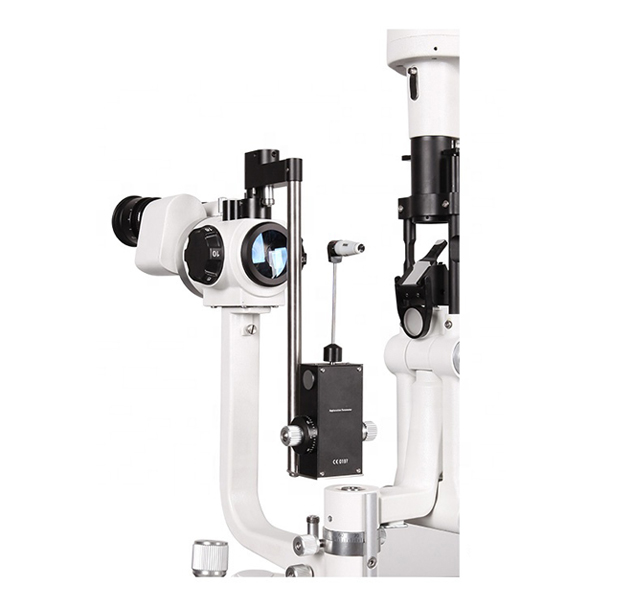

The product is designed on the principle basis of Goldman tonometer.Three types are available:R and T Type are suitable for Haig Streit type slit lamp,while Z type is suitable for Carl Zeiss type slit lamp.



Characteristics:
•It's not only used to examine the eyes,but also measure the intraocular pressure while working under the slit lamp.
•Accurate measurement ensures the total tolerrance less than ±0.066KPa (0.5mmHg).
•Directly get the intraocular pressure.
•Measured intraocular pressure will not be affected by hardness of eye.
•Adjustable measuring pressure ensures the working stability and accurate measurement of tonometer for long time.



Specifications:

Model

YZ-30

Measuring range

0 – 10.64 KPa (0-80mmHg)

Halo Displacement

1.53 × 2 = 3.06mm

Prism head diameter

7mm

Prism head range of activities

3mm

Weight

300g

Size

190 x 80 x 80 mm
