GD09004

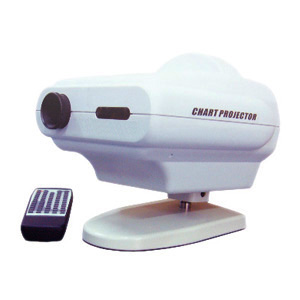

Chart Projector
Model No.: CP-400





Characteristic:

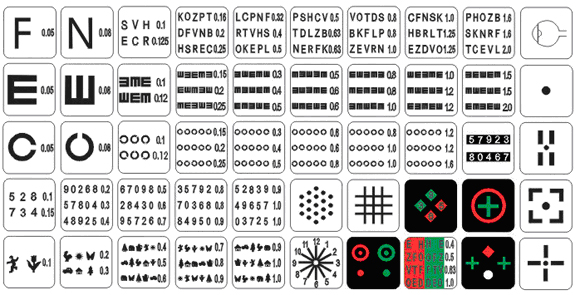

• 50 charts and various masks
• Landolt, Letter, Child, Snellen, 50 kinds of charts, and horlzontal line, vertical line, one chart, various masks can be selected by the remote control box
• Fast, silent chart disk rotation. It moves to the following chart in a maximum of 0.3 seconds.
• User program mode: 2kinds of programs can be selected 48 kinds (maximum) of chart and mask are memorizable.



Technical Parameter:
Projection Distance: 2.0 ~ 7.0m
Projection magnification: 30 (in projection distance of 5m)
Projection size: 335mm × 222mm (in projection distance of 5m)
Tilt angle: From the horizon up or down for each 10 degrees
Source: high-luminance and long-life LED light source
Dimensions: 248 (W) × 336 (L) × 234 (H)
Weight: 4kgs
Power Supply 100-240V
120VA
Automatic shut-off mechanism: 5 minutes
