GD1202006

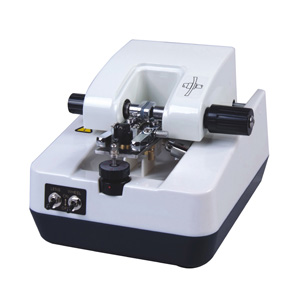

Lens Groover
Model No.: COT-V812I



Features :
Two choices of cutter: 0.55cutter and PC lens cutter
Imported key components
Expert technic design and improvement
Streamline appearance design



Technical Parameters:
Grooving depth:0-0.7mm
Grooving width:0.55mm-0.6mm
Lens edge thickness:1.2mm-11.0mm
Lens diameter:22mm-60mm
Rotating speed of cutter:5500rpm
Power supply:AC100-120V/60HZ,AC200-240V/50HZ
Rated power(motor):95W
Dimensions(packing): 270mm(L)×230mm(W)×200mm(H)
Weight(packing):3kgs
