GD03009

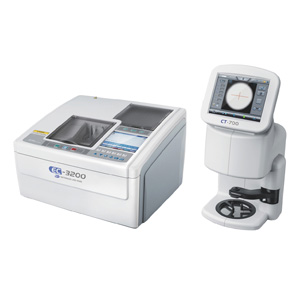

3D Auto Patternless Lens Edger
Model No.: EC-3200/CT-700
Features:
1. Flexible and versatile
2. User-friendly color LCD panel

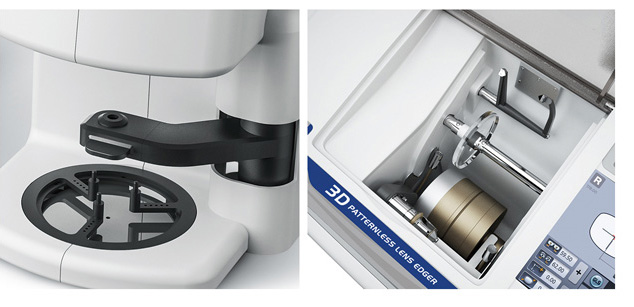

3. Integrated tracing and centering device
4. The display can be tilted
5. The shape imager detects the shape of a pattern, demo lens and horizontal axis automatically
6. The pattern could be stored to improve efficiency. Frame memory could save time and storage space.
7. 3D lens inspection system
8. Grooving and safety beveling
9. Processing mode for various kinds of lens materials

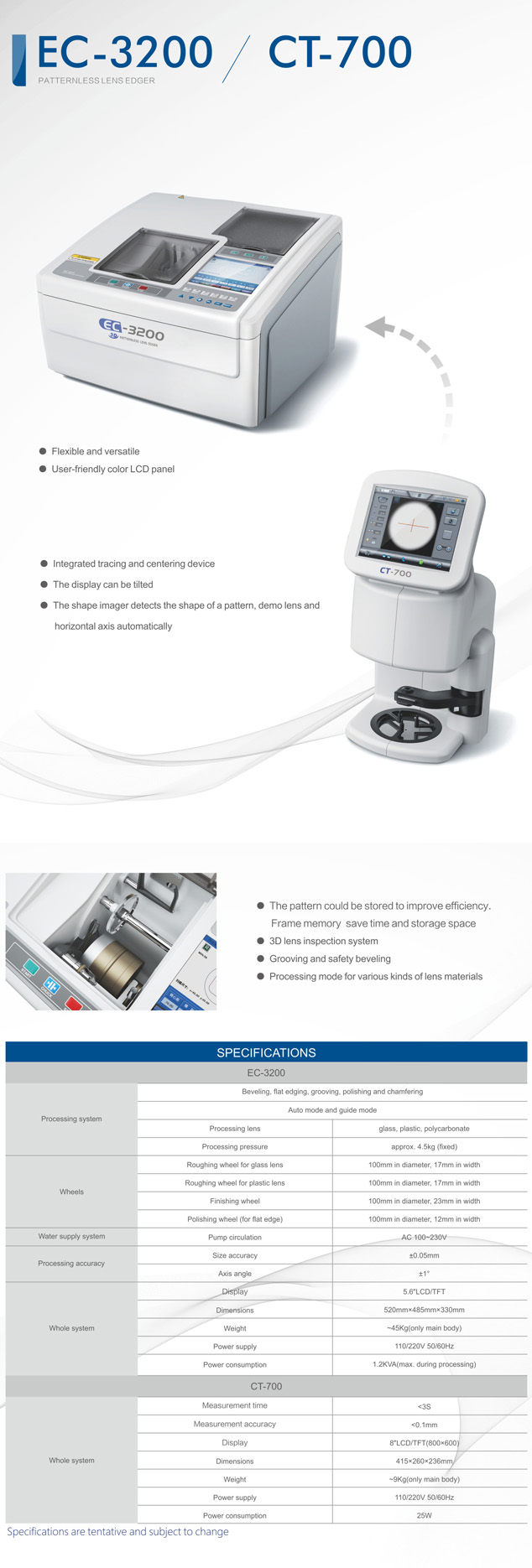

Specifications:
|
EC-3200 | ||
|
Processing system |
Beveling, flat edging, grooving, polishing and chamfering | |
|
Auto mode and guide mode | ||
|
Processing lens |
glass, plastic, polycarbonate | |
|
Processing pressure |
approx. 4.Skg (fixed) | |
|
Wheels |
Roughing wheel for glass lens |
100mm in diameter, 17mm in width |
|
Roughing wheel for plastic lens |
100mm in diameter, 17mm in width | |
|
Finishing wheel |
100mm in diameter, 23mm in width | |
|
Polishing wheel (for flat edge) |
100mm in diameter, 12mm in width | |
|
water supply system |
Pump circulation |
AC 100~230V |
|
Processing accuracy |
Size accuracy |
±0.05mm |
|
Axis angle |
±1. | |
|
Whole system |
Display |
5.6’’LCD/TFT |
|
Dirnensrons |
520mm•485mm•330mm | |
|
Weight |
-45Kg(only main body) | |
|
Power supply |
110/220V 50/60HZ | |
|
Power consumption |
1.2KVA(max. during processing) | |
|
CT-700 | ||
|
Whole system |
Measurement time |
<3S |
|
Measurement accuracy |
<0.1mm | |
|
Display |
8″LCD/TFT(800•600) | |
|
Dimensions |
415mm*260mm*236mm | |
|
Weight |
~9Kg(only main body) | |
|
Power supply |
110/220V 50/60Hz | |
|
Power consumption |
25W | |
