GD0601007
Slit Lamp
Model No.: SLM-2ER



Features:

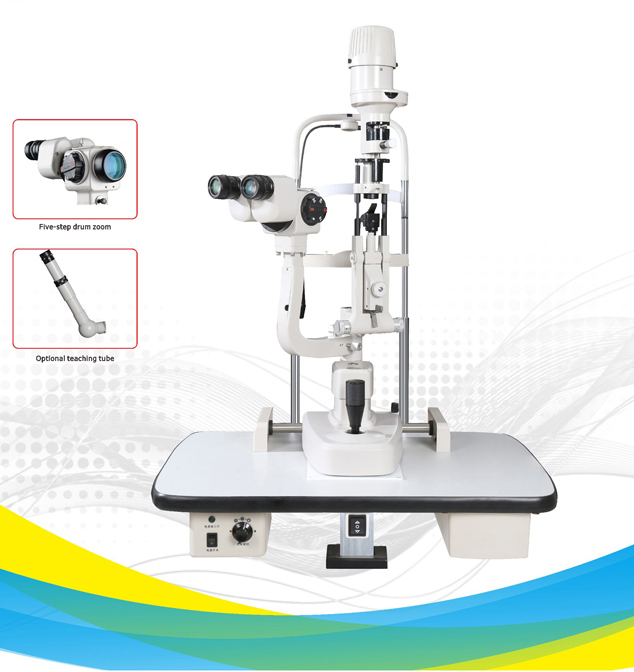

SLM-2ER professional slit lamp microscope,with a large field of view,good scalability characteristics
• Large view range, high magnification, good scalability
• Five-step drum zoom design, easier to use
• Maximum 14mm spot checks greater extent of disease
• 21.5mm high eye point more comfortable to check
• All optical lens are made from import materials, carried out moisture proof, mould proof and coating process, which prove its good optical performance in different weather condition
• High quality micro-positioning platform, easy to operate
• Reserved digital upgrade interface, you can upgrade to a digital slit lamp





Specifications:

Model

SLM-2ER

Microscope Type

Galileo Parallel

Magnifications change way

Drum Five Magnifications

Eyepiece Magnification

12.5X

Total Magnifications

6X 10X 16X 25X 40X

Diopter Adjustment

-5D ~ +5D

Illumination

Three Steps (Stepless Optional)

Slit Width

0-14mm Continuous

Slit Height

1-14mm Continuous

Slit Angle

0°-180° Adjustable

Slit Inclination Angle

5° 10° 15° 20°

Light Source

Light Spot Diameter

0.2mm,1mm,2mm,5mm,10mm,14mm

Filter

Heat Absorption;Grey;Redfree;Cobalt Blue

Fixation

Red LED

Electrical

Illumination Bulb

German Osram Halogen Tungsten Lamp
Led Lamp (Optional)

Input Voltage

110V/220V(±10%)

Input Power

60VA

Diffuse Lens

Yes

Preset Lens

Yes

Laser Interface

Optional

Applanation Tonometer Interface

Yes
