GD1306001

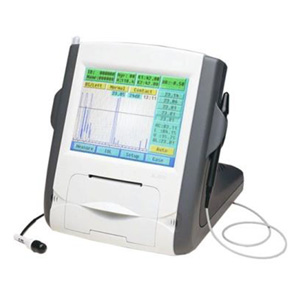

A Scan and Pachymeter
Model No.: SW-1000AP



A Scan:
1. Large color liquid-crystal screen
2. Touch screen input, easy operation
3. Curve freezing: Manual/Auto mode, controlled by pedal
4. Built-in speed thermal printer
5. Enter the name & ID; easy to check archive



Technical Specifications:

A scan probe

10MHz import small size probe, built-in luminotron

Measuring range

15mm-40mm

Measurement precision

±0. 05mm; with macula lutea trace function

Measurement

Anterior chamber depth, lens thickness, vitreous body length, total length and average

Method of measurement

immersion and contact

Eye mode

Phakic/ Aphakic/Dense/ various IOL

IOL formula

SRK-II, SRK-T, BINKHORST- Ⅱ, HOLLADAY, HOFFER-Q, HAIGIS

Storage

10 cases, 5 readings each case

Output

A scan waveform and IOL calculation sheet



P Scan:
1. Large color liquid-crystal screen
2. Touch screen input, easy operation
3. Curve freezing: Manual/Auto mode, controlled by pedal
4. Built-in speed thermal printer
5. Can display ultrasound waveform when measuring
6. Each group is the average of 20 measurements
7. Switch between IOP measured value and actual value



Technical Specifications:

P scan probe

20MHZ, angle of 45 degrees makes easier operation

Resolution

5um

Measuring range

150um~1500um

Display

SINGLE mode and MAP mode
