Catalog
GD02008

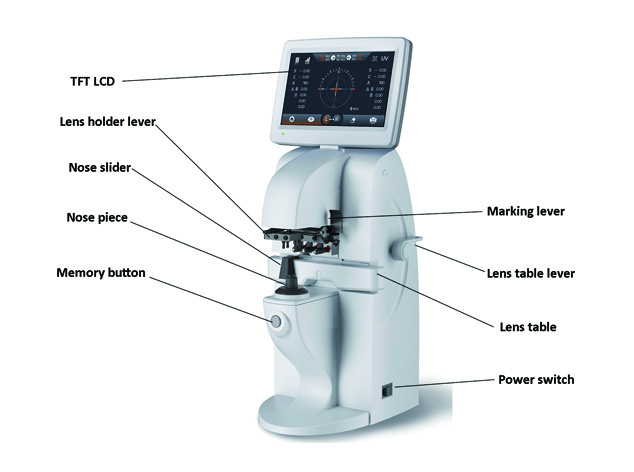

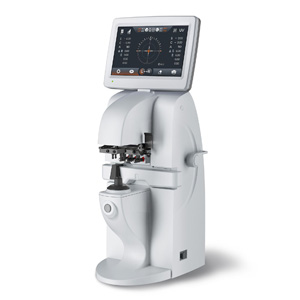

Auto Lensmeter
Model No.: JD-2600C
Features:

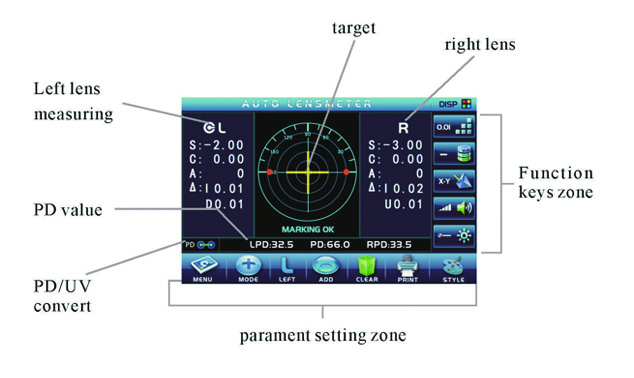

1. 7” color LCD and touched screen
2. Inside UV measurement
3. Easy,quick measurement and accurate data
4. Auto memory and auto screen save
5. Measurement to various lenses, such as single lens, multifocal lens,progressive lens and contact lens, can be preformed
6. PD measurement and data auto save
Specifications:
|
Range of measurement | |
|
Sphere |
0~ ±25m-1(D) 0.01 m-1(D) 0.12 m-1(D) 0.25 m-1(D) step |
|
Cylinder |
0~ ±9.99m-1(D) 0.01 m-1(D) 0.12 m-1(D) 0.25 m-1(D) step |
|
Axis |
0°-180 ° (1 ° step) |
|
Add. |
0~ +9.99m-1(D) 0.01 m-1(D) 0.12 m-1(D) 0.25 m-1(D) step |
|
Prism degree |
0-15cm/m( Δ) 0.01cm/m 0.12cm/m 0.25cm/m(Δ) step. |
|
Measurement mode | |
|
Cylinder |
+,±, – |
|
Prism |
X-Y, P-B |
|
Contact Lens |
soft/hard lens |
|
Measuring mode |
Single/progressive/automatic recognition/contact lens |
|
Others | |
|
Diameter of lens |
Φ12-112mm; |
|
PD |
40-90mm, 0.5mm step; |
|
Speed of measurement |
0.1s |
|
Display |
7” TFT LCD |
|
Printer |
Thermal Printer |
|
Power supply |
AC 100-240V~ 50Hz/60Hz 25VA |
|
Dimension |
184mm*228mm*474mm |
|
Weight |
~3.3kg |
