GD01007
Auto Refractometer Keratometer (Auto Ref/Keratometer, Auto Kerato-Refractometer, Auto Refractor Keratometer)
Model No.: FA-6100BK

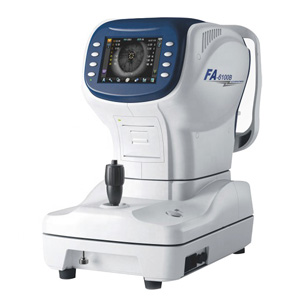

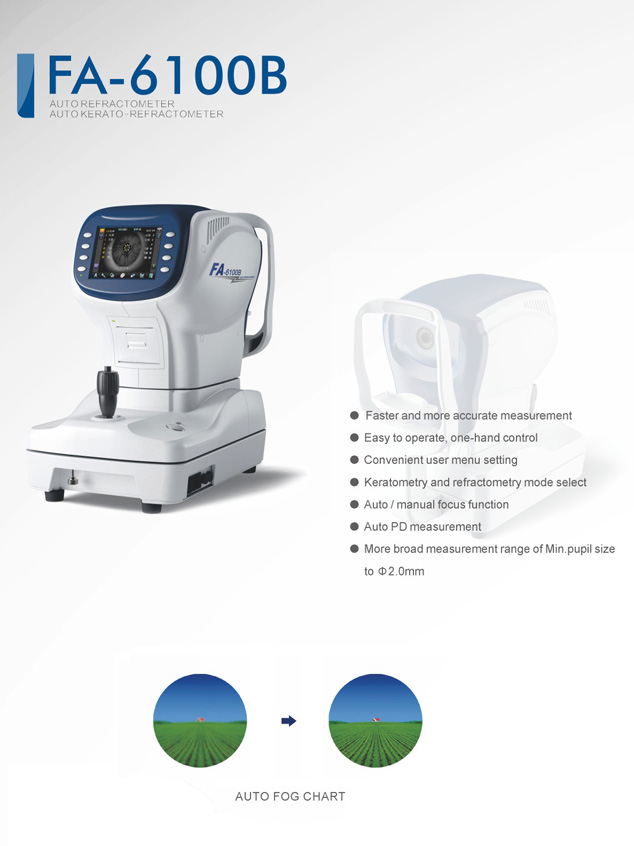

Auto Refractometer
Model No.: FA-6100B
Features:
1. Faster and more accurate measurement.
2. AUTO PD measurement: The PD will be automatically calculated after measurement.
3. Easy to operate, one-hand control: All operations, including UP\Down, Right\Left, Forward\Backward and Start can be easily controlled with one hand through the control stick.
4. Keratometry and refractometry mode select.
5. More broad measurement range of Min. pupil size to Φ2.0mm.
6. Auto / manual focus function.
7. Convenient user menu setting.
Specification:
|
Refractometer | |
|
Vertex distance |
0mm, 12mm,13.75mm |
|
Spherical |
-20- +20D (VD=12)0.12/0.25m-1 Step |
|
Cylinder |
-8- +8m-1 0.12/0.25m-1 step |
|
Axis |
0~180° 1°Step |
|
Cylinder form |
-, +, + |
|
Pupil distance |
45-88mm, 1mm step |
|
Min. pupil size |
2 0mm |
|
Keratometry | |
|
Radius of curvature |
5.0-10mm (increment0.01mm) |
|
Corneal Power |
33.75-67.50D (when corner equivalent refractive indexis 1.337) |
|
Increment selectable from0.12,0.25m-1 | |
|
Corneal astigmatism |
0.00-8.00m-1 (Increment selectable from 0.12,0.25m-1 ) |
|
Axis |
1~180º(increment:1º) |
|
Corneal diameter |
2.0 -14mm (increment:0.1mm) |
|
Others | |
|
Chart |
Auto fog |
|
Memory of data |
10 measure value for each right and left eye |
|
Display |
5.6" L CD/TFT |
|
Print |
Thermal printer |
|
Power supply |
100- 240V 50/60HZ |
|
Dimension |
490mmx280mmx470mm |
|
Weight |
15.5kg |
