GD0601009

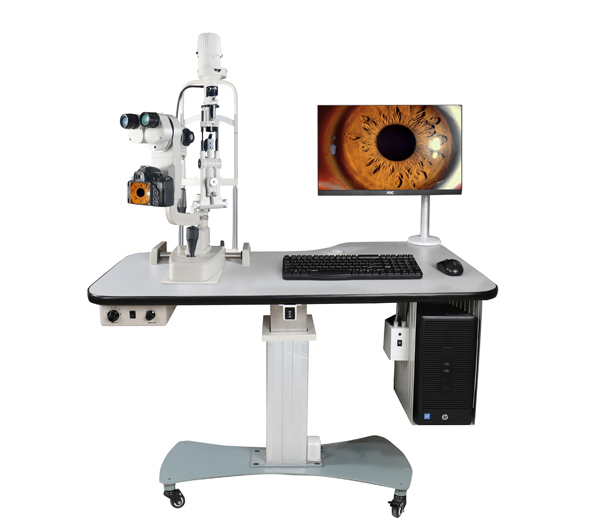

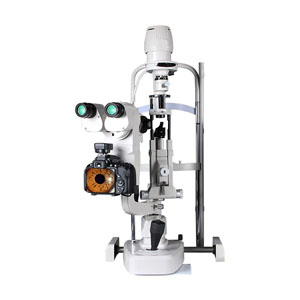

Digital Slit Lamp
Model No.: SLM-3ER
Features:
•Five-step drum zoom design, easier to use, has 6X, 10X, 16X, 25X and 40X magnification, corneal endothelial cells can be observed under 40X
•Maximum 14mm spot checks greater extent of disease
•21.5mm high eye point more comfortable to check
•External yellow filter, enhance the fundus effect(Optional)
•Unique high integrated camera system and analysis system, full program control
•1080P HD video function(Optional)
•Dicom3.0 interface, can connect into hospital’s HIS system, PACS system, support medical treatment networking
Specifications：
|
Model |
SLM-3ER |
|
Microscope Type |
Galileo Parallel |
|
Image Capturing Way |
Canon 1300D 18Mega or D5300 with High DefinitionDSLR 24.1Mega pixels |
|
Synchronous Flash Illumination Compensation System |
Optional |
|
Coaxial Background Light System |
Yes |
|
Magnifications change way |
Drum Five Magnifications |
|
Eyepiece Magnification |
12.5x |
|
Total Magnifications |
6X 10X 16X 25X 40X |
|
Diopter Adjustment |
-5D ~ +5D |
|
Illumination |
Five Steps (Stepless Optional) |
|
Slit Width |
0-14mm Continuous |
|
Slit Height |
1-14mm Continuous |
|
Slit Angle |
0°-180° Adjustable |
|
Slit Inclination Angle |
5° 10° 15° 20° |
|
Light Spot Diameter |
0.2mm,1mm,2mm,5mm,10mm,14mm |
|
Filter |
Heat Absorption;Grey;Redfree;Cobalt Blue |
|
Fixation |
Red LED |
|
Power | |
|
Illumination Bulb |
German Osram Halogen Tungsten Lamp |
|
LED Lamp (Optional) | |
|
Input Voltage |
110V/220V(±10%) |
|
Input Power |
300VA |
|
Diffuse Lens |
Yes |
|
Preset Lens |
Yes |
|
Laser Interface |
Yes |
