GD1202009

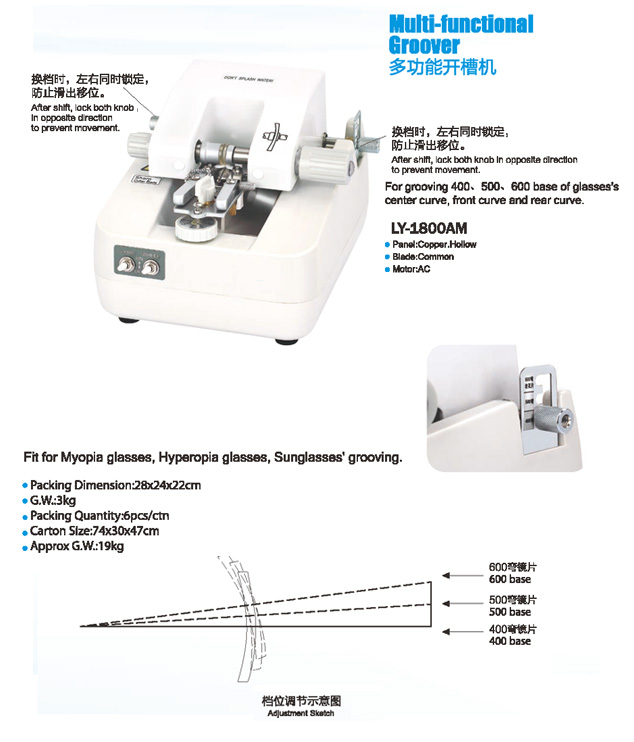

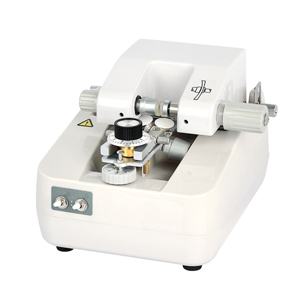

Multi functional Lens Groover
Model No.: LY-1800AM



Features:
For Grooving 400,500,600 base of glasses's center slot, front arc groove and rear arc groove for the edge of the half frame or frameless eyeglass lens.
Detailed product description:
1, LY-1800AM adopts copper hollow panel, AC motor, fine blade;
2, suitable for all kinds of glass, resin and PC lenses;
3, groove depth, position adjustment (front - middle - back);
4, adjustable groove depth: from 0 to 0.7cm;
5, the width of the slot: 0.65, suitable for various sizes of lenses and narrow long lens slot;
6, lens thickness: from 1.5 to 11mm;
7, lens diameter: from 18 to 70cm.



 Specifications:

Technical Data

LY-1800AM

Electric Voltage

220V/50Hz or 110V/60Hz

Power

80W

Packing Dimension

28x24x22cm.

G.W.

3kg

Packing Quantity

6pcs/ctn

Carton Size

74x30x47cm

Approx G.W.

19kg

Panel

Copper, Hollow

Blade

Common
