GD1219005

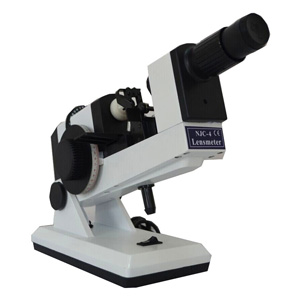

Manual Lensmeter
Model No.: NJC-4




This device is applicable to all-level measurement testing departments, spectacles manufacturers, spectacles retail stores, hospitals or clinics of ophthalmic departments, and some optical elements factories for conducting measurement of spherical and cylindrical diopter, astigmatism axis angle of cylindrical lens, and prism basal angle.



Features:
• ±20D measurement range
• Wide observation vision field
• Classic shape, Favorable price
• Both power: DC or AC





Parameters:

Vertex power

range

+20diopter-20diopter, step 0.12D

Prismatic power

range

5 prism diopter, step 1diopter

Cylindrical axis

range

0 to 180 degrees,step 1 degree

Lenses accommodated

Diameter 20mm to 85mm

Eyepiece focusing

-5D to +5D

Power supply

AC 220V/110V-6V  DC3V
