GD1301005

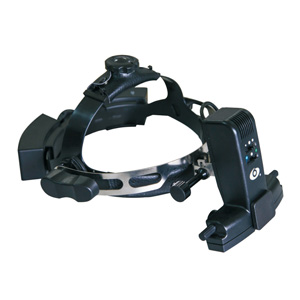

Indirect Ophthalmoscope
Model No.: YZ25C





Features:
• LED lamp (Low-temperature, low-pressure, high-brightness), the light is uniformly, bright and brightness can adjust continuously.
• Imaging clearly, strong dimensional sense and large field of view range. The main body part of this device adopts engineering plastics, compact and exquisite.
• Super lightweight design to reduce fatigue ,operation is very convenient.
• The portable power is suitable for surgery, ward round and consultation.

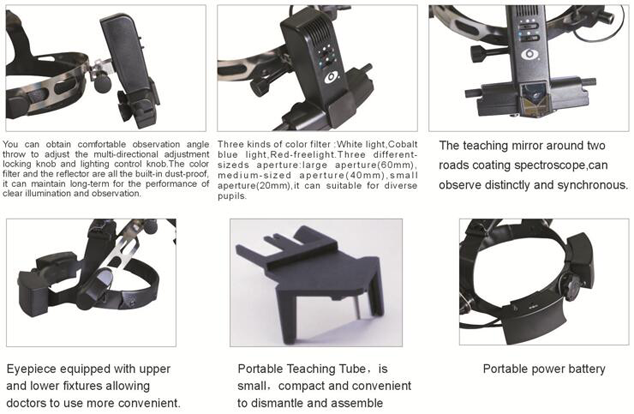

• Equipped with color filter, teaching mirror and sclera depressor, operating be more handy.





Specifications:

Angle of View

45°±5°

Pupil Distance

52mm - 74mm

Weight

≤320g (excluding the head frame)

Adjustable Range of the Head Frame

520mm - 640mm

Depth

85mm - 125mm

Illumination Source

LED

Power Supply

Lit battery pack, DC:7.4V Rechargeable
